Pikus 105 Adv 423ADV GB With Disc 250

SKU: ProductVariantDrop

Barcode: ProductVariantDrop

Raimondi

  • £1,715.00

This Item May Take Longer To Ship, Please Contact Us For A Shipping Date.

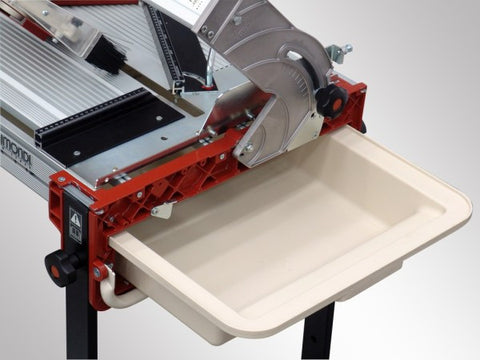

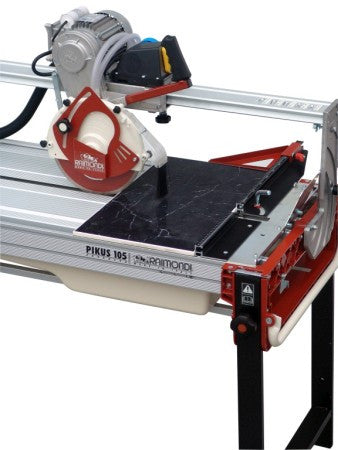

Tile saw Pikus 105 Adv 423ADV GB With Disc 250mm• For cutting porcelain granite marble. Maximum length of cut 105 cm. Maximum thickness of cut 80 mm. Maximum blade diameter 250 mm smallest blade diameter 230 mm. Adjustable cutting depth. Tilting motor assembly for bevel cuts from 0° to 45°. Belt driven system optimise motor torque and cutting capacity. Gear ratio of motor to disc 1,4 ÷ 1. Drive belt type poly V. Cast and extruded aluminium framework.Easy-to-remove polypropylene tank for easy cleaning. Capacity 38 lts. Heavy duty water pump and (2) jet nozzles (front or rear mounted) provide superior blade cooling. Sliding motor assembly with cast aluminium housing provided with 4 re-adjustable pulleys (double bearings). Extruded aluminium rail.Re-adjustable square for long lasting precision. Telescopic legs provided with safety device to prevent collapsing. Floating blade guard remains in contact with tile to provide extra safety during operation. Pivoting blade guard remains parallel with tile to ensure minimum cutting depth. Equipped with diamond disc 250 mm for porcelain. Wheels kit for easy transport. Key kit, wrench, manual. Saw weight 64 kg. Price includes VAT see saw full spec.
