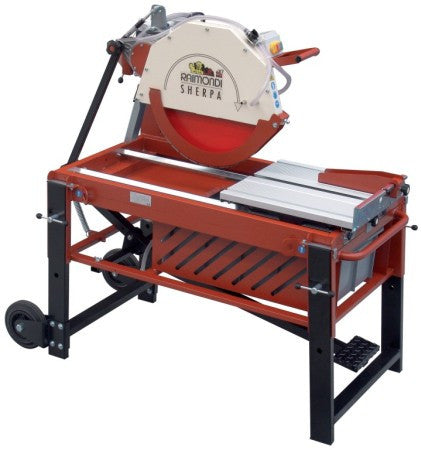

Brick Wet Saw Raimondi 218AS230SD Sherpa
Brick Wet Saw Raimondi Sherpa 218AS230SD 230V/50HZ

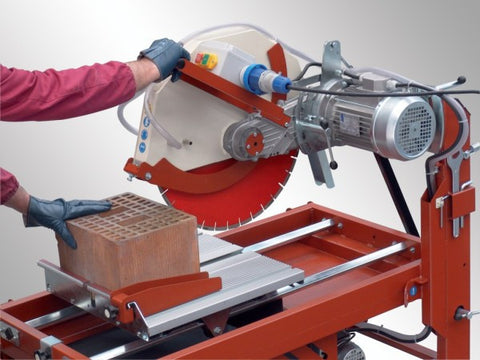

• For cutting high thickness bricks, stones, concrete, etc
• Maximum length of cut 65 cm for materials of thickness up to 16,5cm.
• Maximum length of cut 40 cm for materials of thickness up to 20cm.
• Maximum depth of cut in single pass: 25cm with Ø 600mm disc 20cm with Ø 500mm.
• Maximum depth of cut in double pass: 25 cm.
• Maximum length of cut with Ø 600 mm blade 70 cm for materials up to 14cm thickness. 45cm for materials up to 25 cm thickness.
• Maximum length of cut with Ø 500 mm blade. 70 cm.
• Maximum blade: Ø 600 mm minimum blade: Ø 400 mm.

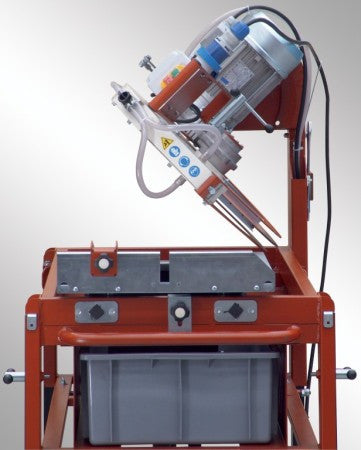

• Belt driven system optimizes motor torque and cutting capacity. Gear ratio of motor to disc 1,1 ÷ 1. Drive belt type poly V.

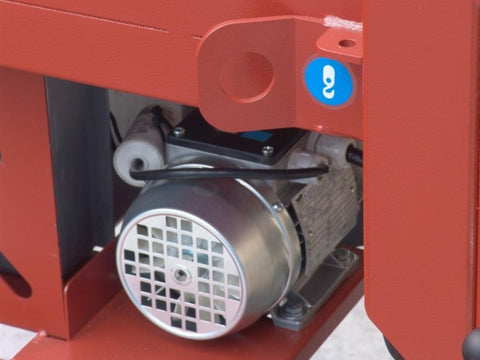

• Double floating blade guards provide extra safety during operation. • Heavy duty external pump and jet nozzles provide superior blade cooling

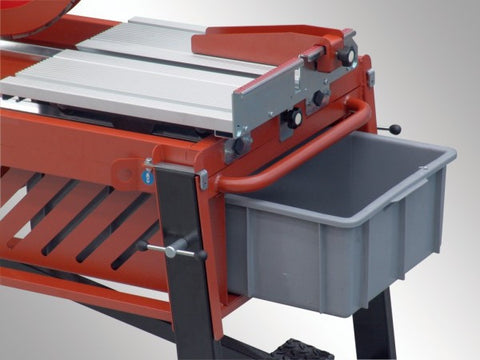

• Removable polypropylene tank for easy cleaning. Capacity: 56 lts.
• Trolley is provided with anti-overturning device and locking system for safe and easy transport.

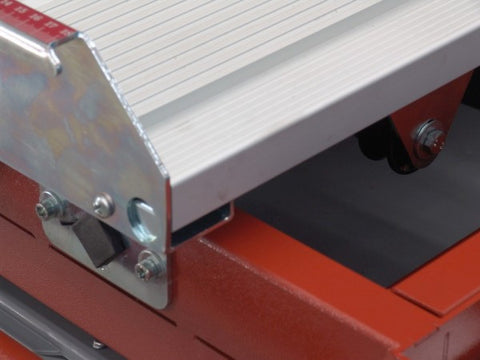

• Trolley equipped with 6 adjustable pulleys (double bearings).

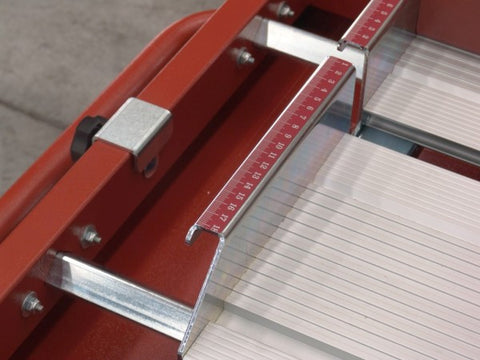

• Steel made replaceable trolley guides.
• Telescopic legs provided wh safety device.
• Provided with hook housing for lifting equipment.
• Equipped with: key kit, wrench, user and maintenance manual.
Supplied with out blade with out pedal. Saw weight 137kg
