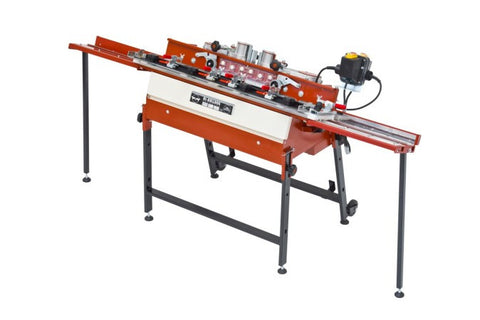

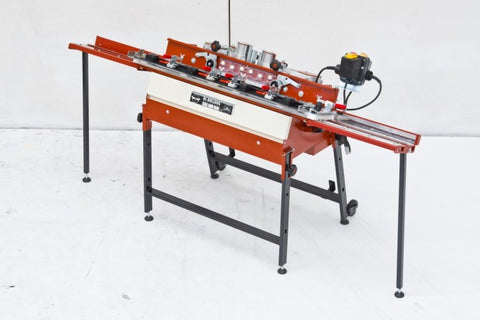

428GB BI Bulldog ADV 115V/50Hz Single Phase 1.5HP/1KW

SKU: ProductVariantDrop

Barcode: ProductVariantDrop


  • £3,828.00

 428GB BI BULL DOG ADV 115V/50Hz Single Phase 1.5HP/1KW

  • For bullnosing and bevelling. Create 1/2 Bullnose, full bullnose, 45° bevel (mitre) on marble, granite, porcelain, single and double fired.
  • Double motor assembly for operating with two diamond wheels of different type simultaneously and cut times.
  • Maximum length of shaping: 120 cm.
  • Minimum tile width: 4 cm. Maximum tile width: 60 cm.
  • Maximum depth of shaping/radius half bullnose: 30 mm.
  • Maximum depth of shaping full bullnose: 22mm; wheel radius: 11 mm.
  • Optional external tank + pump kit.
  • Optional device for automatic feed.
  • Optional wheel kit feed.
  • Three levels of finishing: rough, finished, polished.
  • Gear ratio of motor to wheel 1 ÷ 1.6. Drive belt type poly V.
  • Heavy duty water pumps provides superior wheel cooling.
  • Supplied with: universal table, key kit with wrench, dressing stone, user and maintenance manual.
