Raizor for cutting large format tiles 433CRR
THE RAIZOR 433CR R

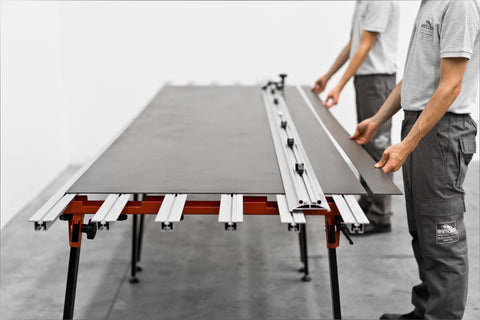

• Cutting system for large format tiles up to 332 cm. (447 cm with optional extension), lightweight 9Kg and easy to transport.

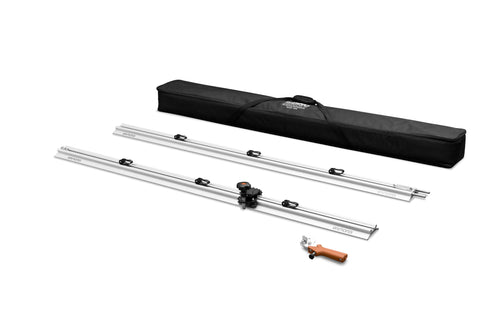

• RAIZOR is composed by:
two connectable guides with cutting length of 160 cm each (332 cm. when combined). Die-cast cutting unit provided with wolfram carbide wheel Ø 16 mm and pin (pin rotates on bearings) cutting-off pliers for tiles/slabs with thickness from 3 to 6 mm everything packed in a padded bag with shoulder-straps and provided with inside modular compartments and pocket.

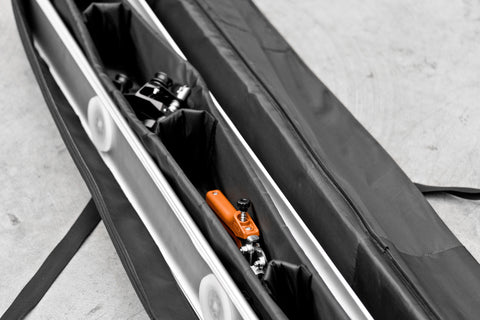

• The resistant padded bag protects the product and allow to carry it easily. It has adjustable compartments and inside pocket for placing personal belongings or work tools.
• Guides are made of sturdy aluminum extruded profiles, each one with 3 stain-free suction cups Ø 88 mm - 6 suction cups in total.

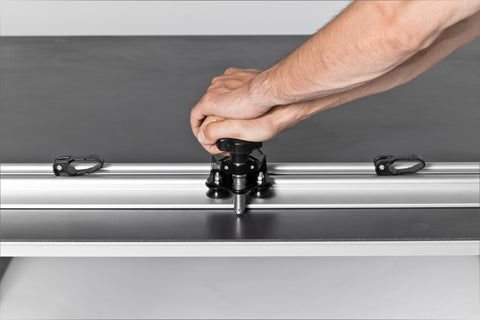

• The suction cups, extremely useful while measuring the size of the cut to be made, prevent the cutting guide to move during the scoring, ensuring the maximum precision. Also, they prevent the cutting guide to overturn, no matter how much pressure is applied during the scoring: this allows to effectively score even high thickness tiles.
• The suction cups’ handles perform a 180° movement in order not to interfere with the cutting unit.

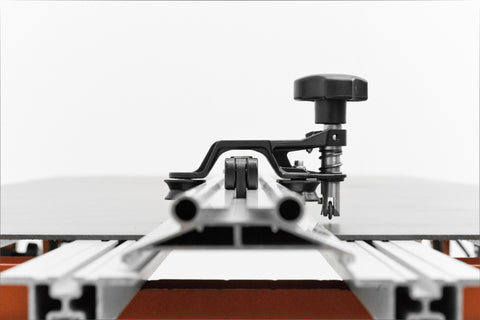

• The cutting unit is made of die cast aluminum and runs onto the guide thanks to 3 polyoxymethylene (wearing-resistantbmaterial) wheels each equipped with two internal bearings. It is provided with fine adjustment systems (factory-calibrated) allowing the perfect coupling of the cutting unit with the guide. This allows both to eliminates any kind of play and to perfectly align the wolframcarbide cutting-wheel to the guide resulting in maximum efficacy, precision and quality of cut.
• To cut tiles thicker than 6 mm use the pliers 169TM01AN (accessory). Made of sturdy galvanized steel they are provided with knob to apply progressive and precise pressure exactly on the scoring line.

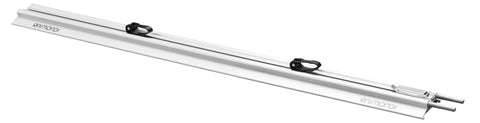

• The accessory extension (art. 433CRP100) offering a cutting length of 103 cm if used alone, allows the RAIZOR system to reach a maximum length of cut of 447 cm or 275 cm by using only one profile/guide plus the extension. Price inculdes VAT See full range here
